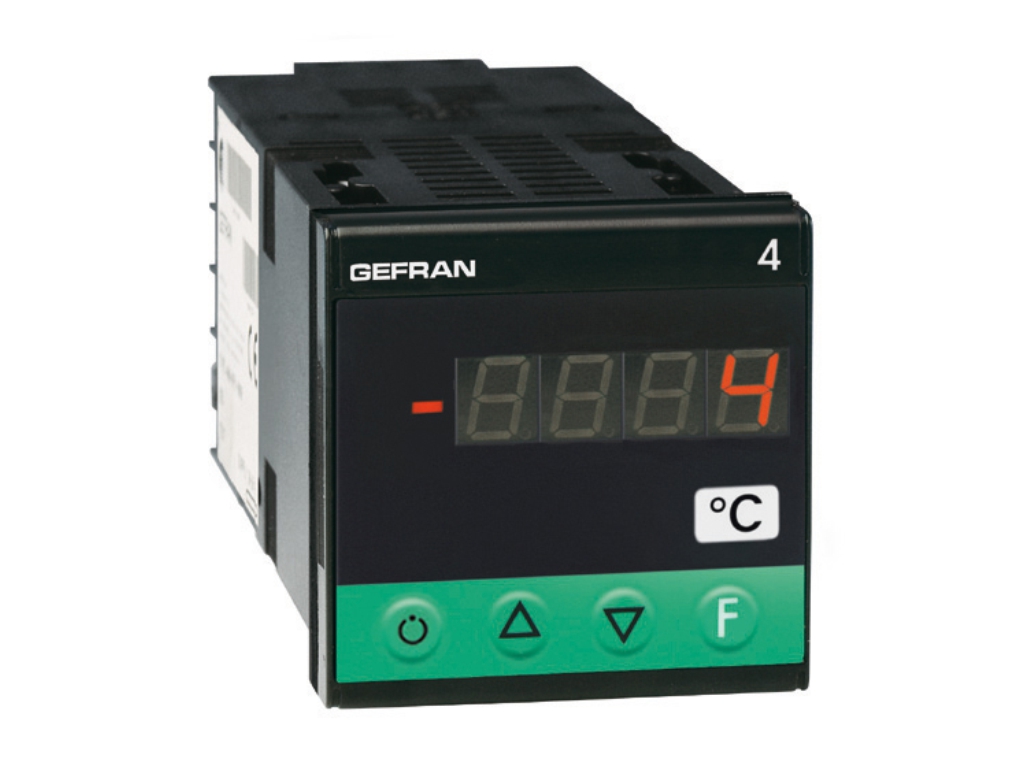

4T48 Configurable indicators

  • 4T48 Configurable indicators

Features

Dimension: 48 × 48 × 109mm
    • Faceplate configurable input
    • Protected by a personal code
    • Configurable by a serial link
    • Transmitter power supply incorporated
    • Custom thermocouple linearisation available
    • Internal linearisation for engineering units
    • Labels provided for the more common physical units
    • Sampling time and trip intervention programmable between 15 and 120msec with resolution between 2000 and 8000 steps
    • Retransmission of the measured variable signal
    • 3 trip points, completely configurable from the faceplate
    • 4 trip points completely configurable from keyboard
    • RS485 optically isolated serial line 【Protocol : GEFRAN CENCAL or MODBUS RTU】
    • Rapid configuration from PC with Winstrum package
