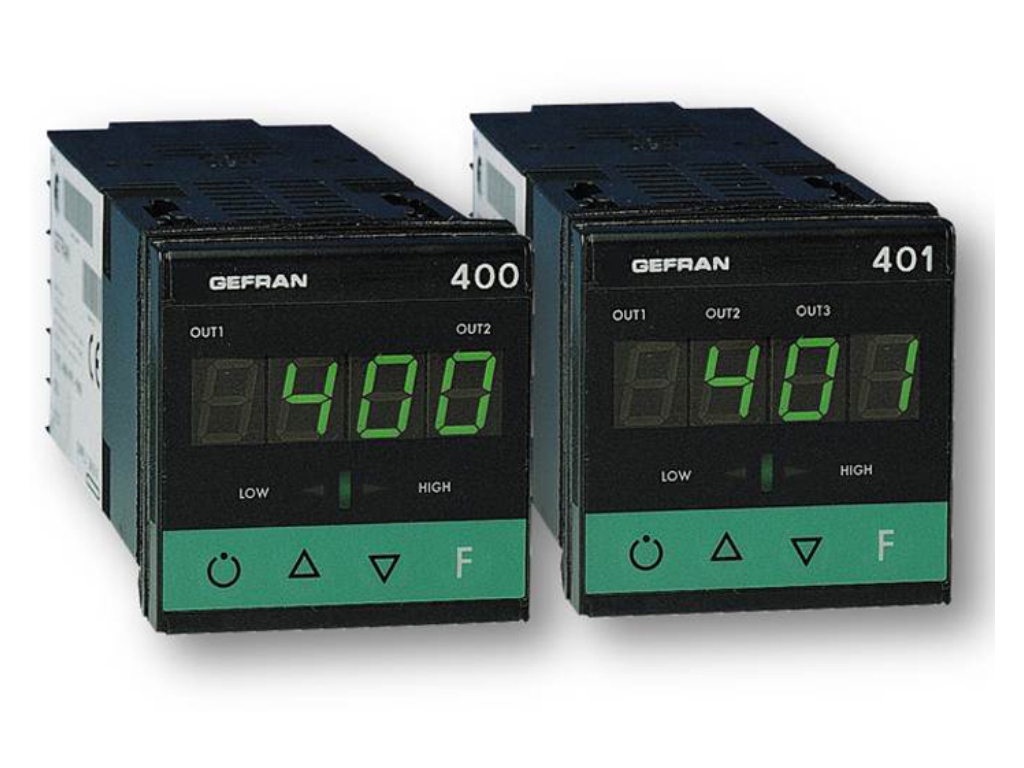

Gefran 400-401 Single display controller

  • Gefran 400-401 Single display controller


Dimension: 48x48mm (1/16 DIN) depth 99mm
    • Universal input configurable from the faceplate
    • Accuracy better than 0,2% f.s. at nominal condition
    • Deviation bargraph indication
    • Control output: relay or logic with Heat/Cool function
    • 1 alarm with configurable function (up to 3 different alarm setpoints)
    • Self-tuning, Auto-tuning, Soft-start, Man/Auto function
    • Possibility to configure the unit by serial line
    • Possibility of auxiliary input for current transformer 50mAac or 3rd alarm output, logic or relay (only 401 mod.)
