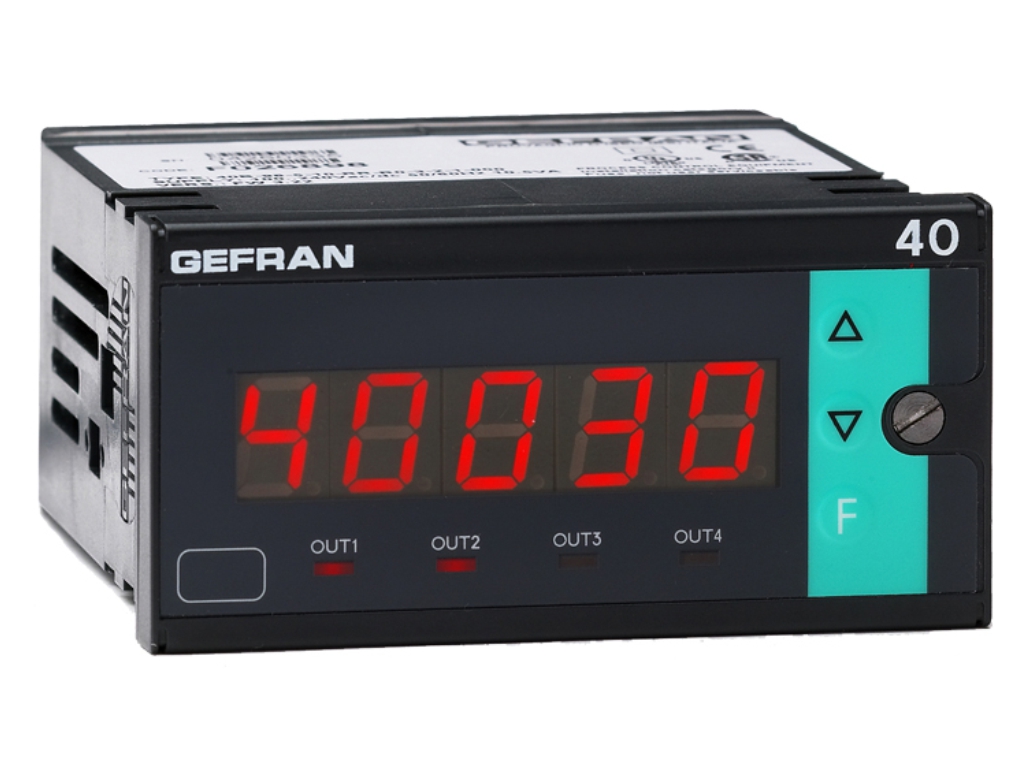

40B96 Indicator/Alarm Unit for force, pressure and position inputs

  • 40B96 Indicator/Alarm Unit for force, pressure and position inputs

Features

Dimension: 96x48mm (1/8DIN) depth 105mm
    • Strain-gauge or potentiometer input - configurable by faceplate
    • Sensor supply check
    • Easy to calibrate with sensitivity auto-ranging
    • Protected by a personal code
    • Configurable by serial link
    • Internal linearisation for engineering units
    • Labels provided for the more common physical units
    • Sampling time and trip intervention programmable between 15 and 120msec with resolution between 4000 and 30000 steps
    • Retransmission of the measured variable signal
    • 4 trip points, completely configurable from the faceplate
    • 6 wires calibration
    • Version for magnetostrictive sensors
