TC5E Hot Runner Temperature Controllers
Overview

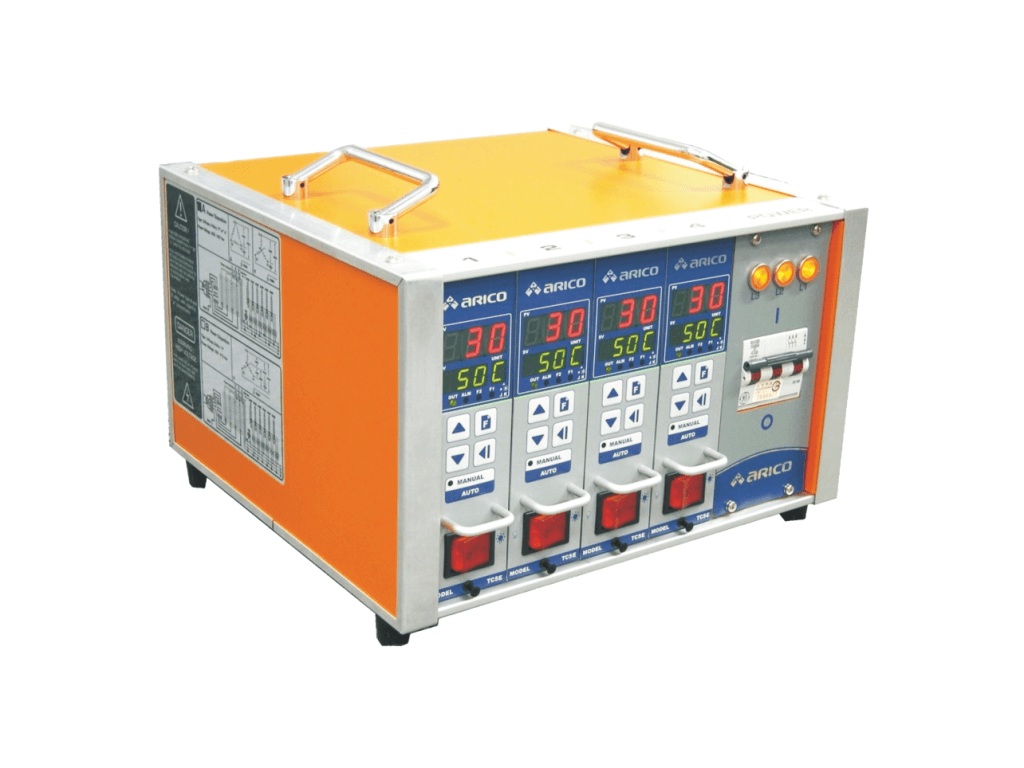

- The TC5E features a high-quality aluminum frame design for its appearance, which not only has a great texture but is also robust and durable. The stackable design allows for greater flexibility in space application, enabling free combinations according to specific needs.
- The machine has an NFB switch and a cooling fan built-in to ensure stability and safety during use. It also uses European and American imported multi-pole connectors, and terminal wires are crimped with a terminal machine to enhance the stability and reliability of the product.
- The standardized design is applicable to modules of various brands, which improves the versatility and applicability of the product.

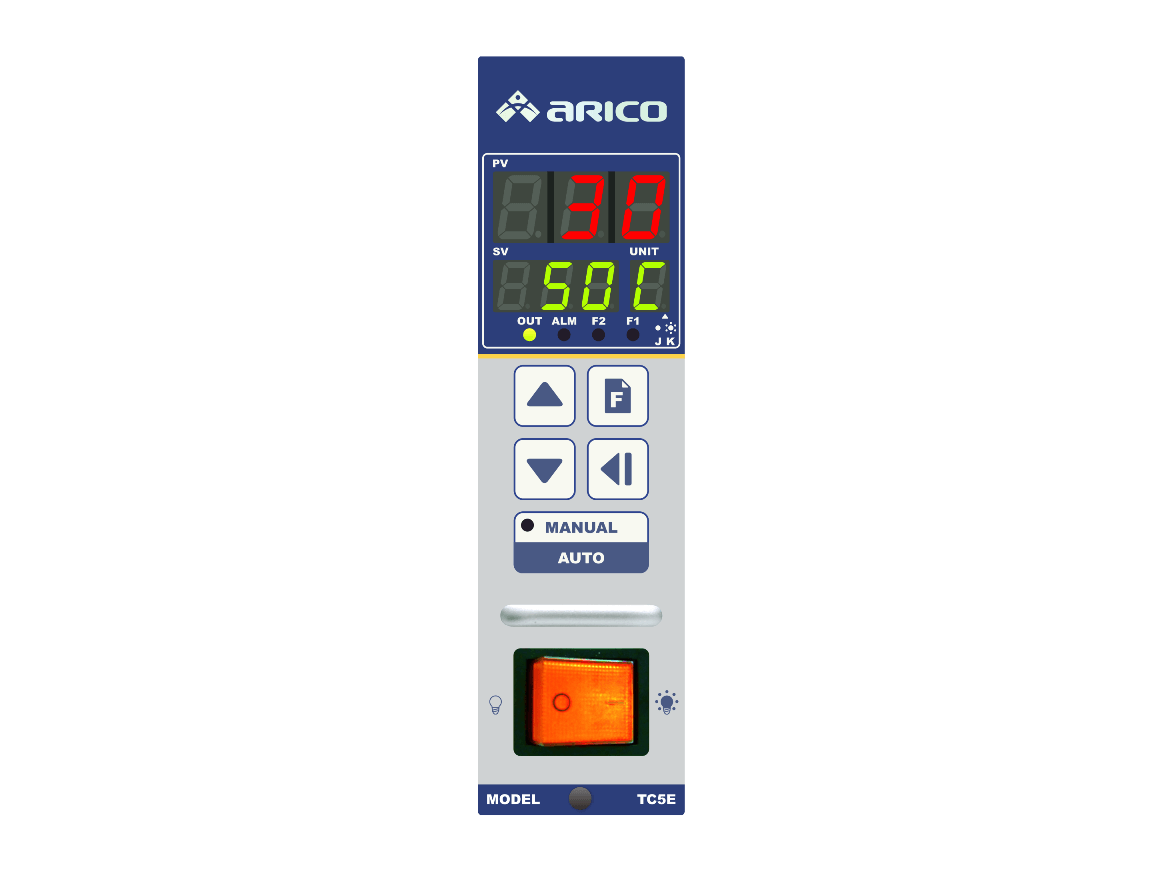

| TC5E | Module |
|
Number of Zones per Module |
1 zone |
|
Max. Current per Zone |
15A |
|
Input Power |
230Vac±10%, 50/60Hz |
|
Input Thermocouple Type |
J/K type |
|
Power Consumption |
230Vac: 3W |
|
Output Power |
3450W, 230Vac/15A(per zone) |
|
Output Mode |
Zero cross/Phase angle |
|
Control Accuracy |
±0.25% FS |
|
Measurement Accuracy |
±0.25% FS |
|
Temperature Control Range |
0~600°C/32~999°F |
|
Storage Temperature |
-20~70°C/-4~158°F |
|
Operating Temperature |
-10~50°C/14~122°F |
|
Operating Humidity |
0~80% RH(no condensate) |
|
Communication Mode |
× |
|
Communication Speed |
× |
|
Fuse |
Ceramic fuse |
|
Detection Functions |
Fuse open-circuit |
| TC5E | 1 zone | 2 zones | 4 zones | 6 zones | 8 zones | 12 zones |
| Type | T5A01 | T5A02 | T5A04 | T5A06 | T5A08 | T5A12 |
| Power Switch Capacity(A) | None | 32 | 32 | 63 | 63 | 63 |
| Output Connector | 4pin+E(ground) | 16pins×1 | 16pins×1 | 24pins×1 | 16pins×2 | 24pins×2 |
| Power Cable | 2mm²×3C×3M | 5.5mm²×5C×3M | 5.5mm²×5C×3M | 8mm²×5C×3M | 8mm²×5C×3M | 8mm²×5C×3M |
| Dimension W×H×D(mm) | 96×188×278 | 223×215×344 | 323×215×344 | 424×215×344 | 524×215×344 | 726×215×344 |
| Specs/Model | TC5T |
TC5H |
TC5E Plus |
TC5E |
|
Number of Zones per Module |
2 zones |
1 zone |
||
|
Max. Current per Zone |
15A |
|||
|
Input Power |
230Vac±10%, 50/60Hz |
|||
|
Input Thermocouple Type |
J/K type |
|||
|
Power Consumption |
230Vac: 3W |
|||
|
Output Power |
3450W, 230Vac/15A(per zone) |
|||
|
Output Mode |
Zero cross/Phase angle |
|||
|
Control Accuracy |
±0.25% FS |
|||
|
Measurement Accuracy |
±0.25% FS |
|||
|
Temperature Control Range |
0~600°C/32~999°F |
|||
|
Storage Temperature |
-20~70°C/-4~158°F |
|||
|
Operating Temperature |
-10~50°C/14~122°F |
|||
|
Operating Humidity |
0~80% RH(no condensate) |
|||
|
Communication Mode |
RS-485(standard MODBUS)optional |
× |
||
|
Communication Speed |
9600/19200/38400/57600/115200 |
× |
||
|
Fuse |
Ultra-high speed ceramic type, 250Vac/20A, 30mm |
Ceramic fuse |
||
|
Detection Functions |
Current/Fuse open-circuit/TRIAC Short-Circuit Detection |
Fuse open-circuit |
||
Hot Runner Temperature Controller FAQ(TCE)
Q1: What is the control configuration of the TC5E?
A1: The TC5E features a 1-zone-per-module design. It is a reliable, standalone solution for standard molds without the need for communication protocols.
Q2: How can heater damage be effectively prevented?
A2: The entire series comes standard with a Soft Start function. During the initial startup phase, it utilizes pulse power delivery to eliminate moisture and mitigate inrush current, effectively extending the heater's operational lifespan.
Q3: What is the maintenance procedure if a module malfunction occurs?
A3: The entire series features a plug-in module design. Maintenance personnel only need to remove and replace the faulty module while the power is off. This process requires no rewiring, minimizing downtime.
Q4: What safety and alarm features are available on the TC5E?
A4: It includes fuse-break detection. For alerts, the buzzer is an optional feature, providing an economical choice for basic production needs.
