TC5600 Multi-Cavity Hot Runner Temperature Controller
Features
- Multi-cavity HRTC controls dozens of temperature zones at once, saving space and equipment. It's ideal for large, high-precision production, boosting yield, efficiency, and product consistency.

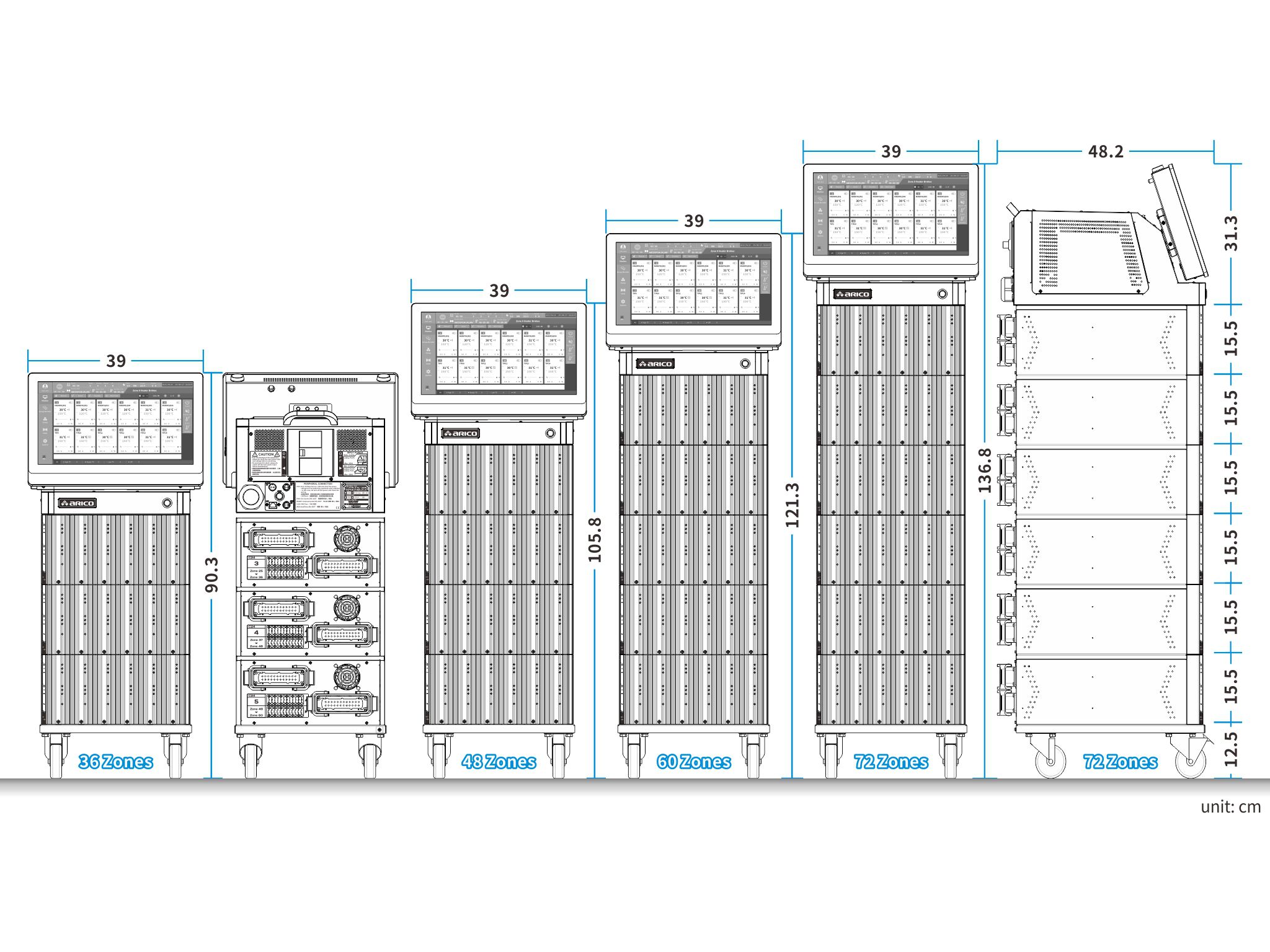

- TC5600 uses a stackable, modular design. Faulty zones and issues can be quickly identified, and modules easily replaced to resume production.
- Easy power configuration change, convenient for use in different power systems in most parts of the world.
- The high-end industrial 1920×1080 HMI has clear images and a touch screen; Tree-structure interface is simple and easy to use.
- A single HMI can connect up to 240 zones (120 IDs) of HRTC with automatic module ID recognition, plug-and-play, no complex setup needed.
- Heater detection function (voltage, current, impedance and power) to understand the heater status.
- Multiple module abnormality detection can quickly troubleshoot problems.
- If the control-loop opens, the system auto-switches to manual, follow, or continuous output to keep production running.
- Mold Viewer: Allows preloading a mold drawing and inputting heater data for easy on-screen monitoring of zone parameters.
- Synchronous Heating Function: After startup, the manifolds heat first. Once they reach the right temperature, the tips begin heating. This helps prevent power overload and avoids plastic degradation from overheating in the tips.
- Synchronous Cooling Function: When enabled, the tips cool down along with the manifolds to prevent deformation caused by uneven cooling speeds.
- Three-phase power data helps adjust loads to reduce power loss.
- Number of zones: 2 zones
- Power input: 230Vac±10%, 24Vdc±5%, 50/60Hz
- Power consumption: 230Vac (3W), 24Vdc (2W)
- Output power: 3450W, 230Vac/15A (per zone)
- Thermocouple: J/K type
- Temperature control range: 0~600°C/32~999°F
- Control accuracy: ±0.25%FS
- Measuring accuracy: ±0.25%FS
- Output trigger mode: Zero cross/Phase angle
- Fuse: Ultra-high speed ceramic type, 250Vac/20A, 30mm
- Detection function: Current, Fuse break
- Temperature alarm mode: Hi/Lo/Hi with standby/Lo with standby/Absolute
- Abnormal alarm: Thermocouple: Short/Break/Reverse, Heater: Short/Break/Overload, TRIAC Short circuit, Fuse break.
- Communication: RS-485 (MODBUS, Isolation type)
- Communication speed: 38400/57600
- Board ID: Automatic identification (used with BUS board)
- Indicator lights: Output, Alarm, Fuse, Communication
- Storage temperature: -20~70°C/-4~158°F
- Operating temperature: -10~50°C/14~122°F
- Operating humidity: 0~80%RH (no condensation)
- Operating altitude: Below 1000 meters above sea level
