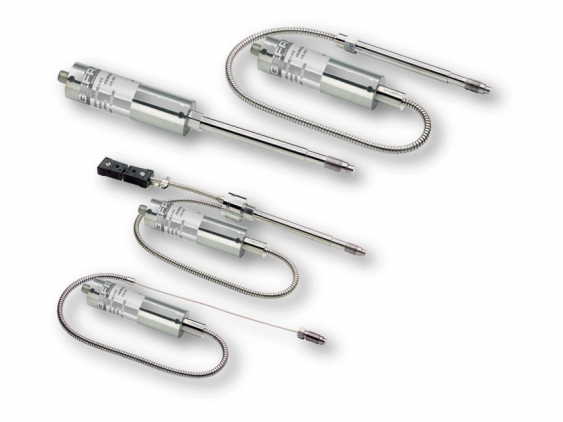

WX series Oil-filled Melt pressure transmitters for applications in potentially explosive atmosphere

  • WX series Oil-filled Melt pressure transmitters for applications in potentially explosive atmosphere

Features

    • The WX series of Gefran, are pressure transmitters for using in High temperature environment.
    • The main characteristic of this series is the capability to read temperature of the media up to 315°C.
    • The constructive principle is based on the hydraulic transmission of the pressure.
    • The fluid-filled system assures the temperature stability.
    • The physical measure is transformed in a electrical mea-sure by means the strain-gauge technology.

+ Add to Inquiry
  • Pressure ranges: 0-35 to 0-1000 bar / 0-500 to 0-15000 psi
  • Extensimetric measurement principle with Wheatstone bridge
  • Precision: <±0.25% FSO (H); <±0.5% FSO (M)
  • Calibration signal 80% FSO internally generated
  • Filled with FDA-approved oil CFR 178.3620 and CFR 178.878
  • Completely interchangeable with all existing products
  • Protection level: IP65 (6-pin connector)
  • Standard threading 1/2-20 UNF, M18x1.5, other versions on request
  • 17-7 PH stainless steel diaphragm with TiN (Titanium Nitride) coating
