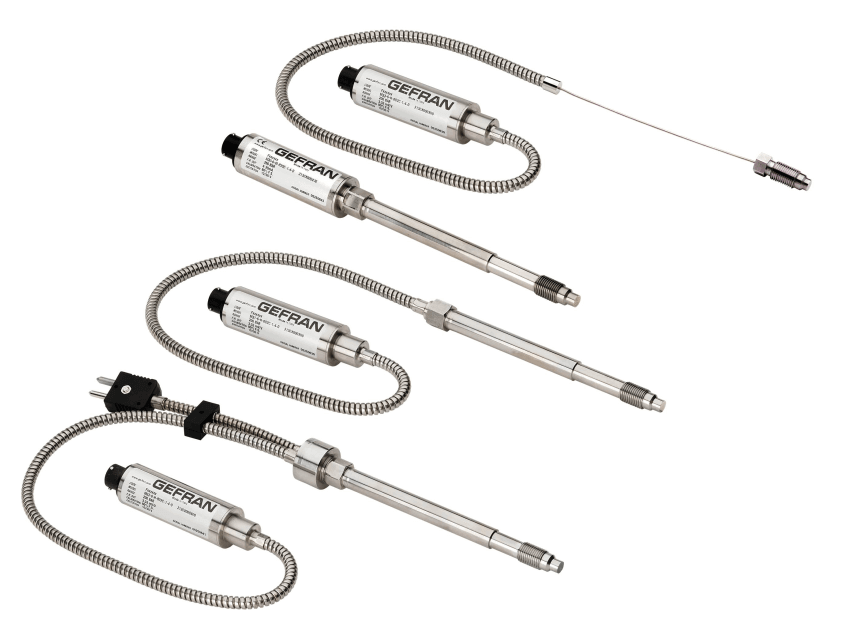

WN series Oil-filled melt pressure transmitters - Voltage output

  • WN series Oil-filled melt pressure transmitters - Voltage output


    • The WN series of Gefran, are pressure transmitters for using in High temperature environment.
    • The main characteristic of this series is the capability to read temperature of the media up to 315°C.
    • The constructive principle is based on the hydraulic transmission of the pressure.
    • The fluid-filled system assures the temperature stability.
    • The physical measure is transformed in a electrical mea-sure by means the strain-gauge technology.

+ Add to Inquiry
  • Pressure ranges from: 0-35 to 0-1000 bar / 0-500 to 0-15000 psi
  • Strain gage Wheatstone bridge
  • Accuracy: <±0.25% FSO (H); <±0.5% FSO (M)
  • Internally generated 80% calibration signal (R-Cal)
  • Fluid-filled system for temperature stability
  • Oil filling meets FDA requirements CFR 178.3620 and CFR 172.878
  • Fully interchangeable with all existing brands
  • Grade of protection: IP65 (6-pin connector version)
  • 1/2-20 UNF, M18x1.5 standard threads; other types available on request
  • Standard diaphragm is a 17-7 PH stainless steel TiN (Titanium Nitride) coated corrugated diaphragm
