TCTX

  • TCTX

Features

+ Add to Inquiry
  • Thermocouple Type:Thermocouple single element type "J" according to IEC 584 class 2 (ASTM E 230)
  • Thermocouple Type:Thermocouple single element type "K" (*) according to IEC 584 class 2 (ASTM E 230)
  • (*) Type K available on request

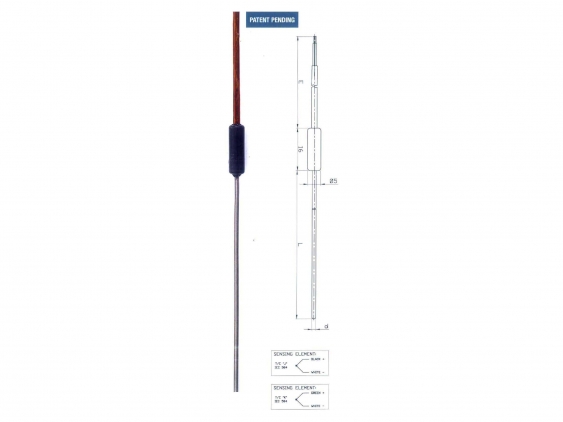

  • Construction:Mineral insulated cable (MgO) with ungrounded/grounded hot junction
  • MgO Cable Sheet Material:T/C "J" AISI 304
  • MgO Cable Sheet Material:T/C "K" INCONEL 600
  • Performances:Max temperature sensing part: 600 °C (type "J"), 1100 °C (type "K")
  • Performances:Max temperature transition: 500°C
  • Performances:Max temperature cable: 300°C
  • Transition:Refractory polymer transition
  • Sensing Part Dimensions:d=1±0.1mm / d=1.5±0.1mm
  • Minimum Bending Radius:Three times, diameter "d"
  • Extension Cable:2-wires compensated type "K" or "J" cable 24 AWG, twisted wires, insulated with PTFE + Kapton + Kapton, easy to strip, evident colour on the conductors according to ANSI MC 96.1 (IEC 584)
  • Insulation Resistance:Rmin=100MOhm @ 100Vcc
