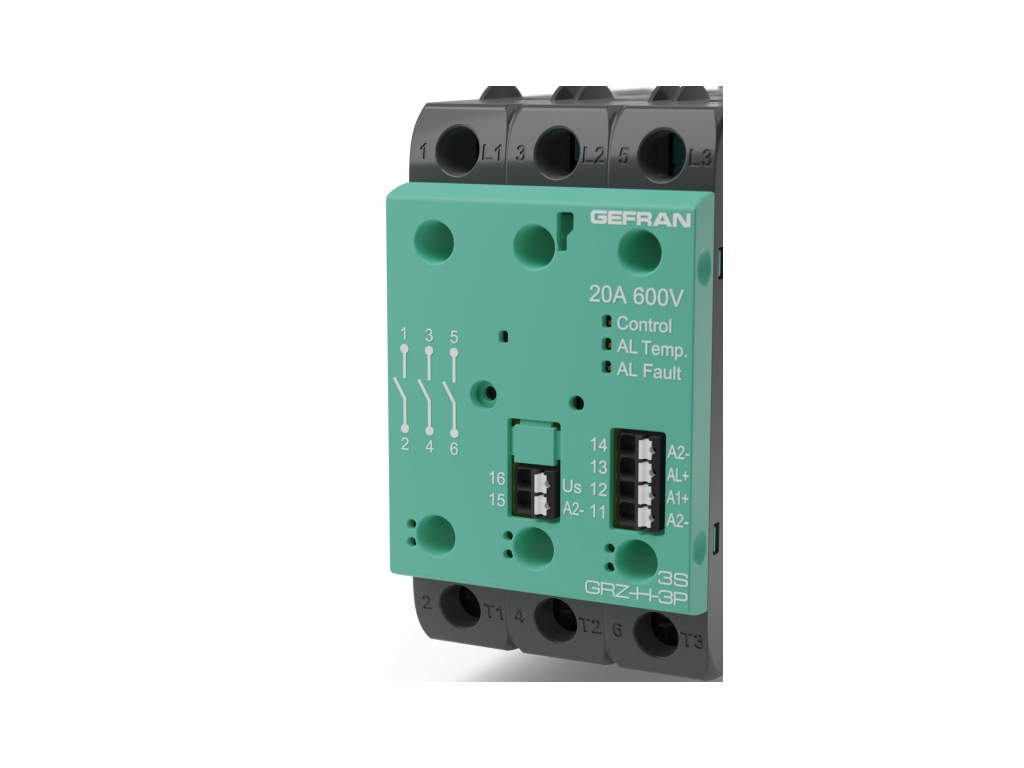

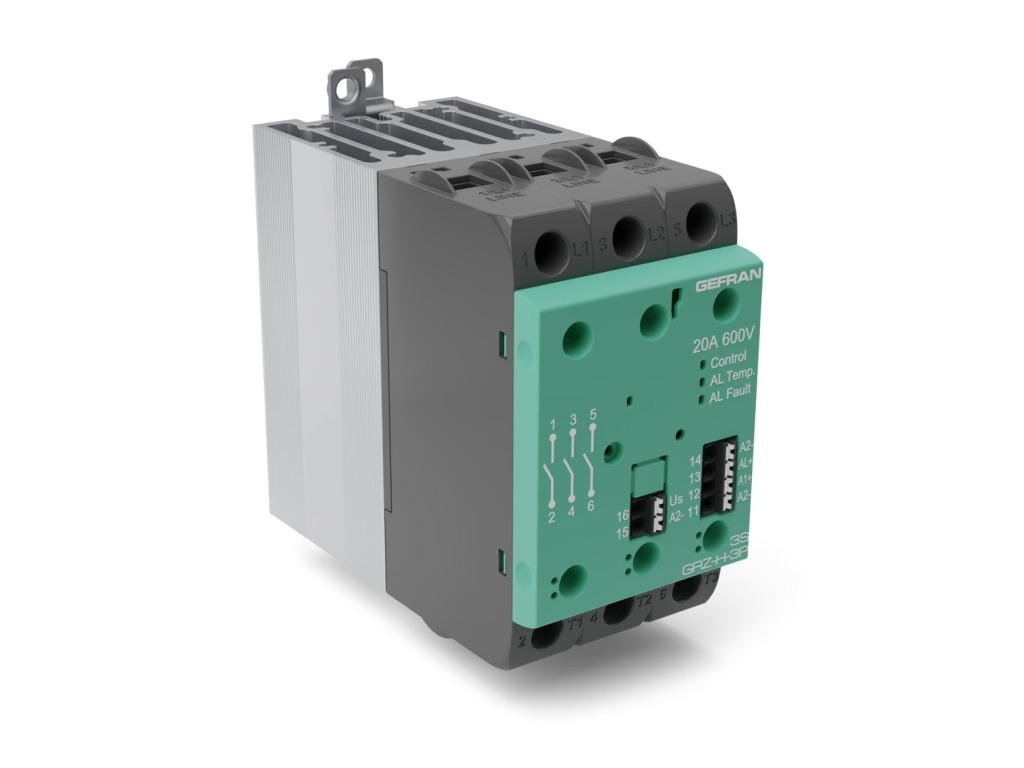

Gefran GRZ-H Three-phase solid-state relays, 10 A to 75A
Features
- Zero-crossing voltage switching (ZC)
- Overtemperature protection
-
Compact designs
-
The GRZ-H series is a three-phase solid-state relay that controls electric heaters and industrial heating processes. The compact designs are ideal for electrical panels with limited space.
-
Electrical heating control
The current range for the GRZ-H series is 10A to 75A, and this controller has an efficient zero-crossing (ZC) mode.
-
Two or three-leg load control
The GRZ-H series is configured to control two or three legs of a heating circuit. While three-leg breaks are commonly used, the two-leg option generates less heat in the electrical panel.
-
Diagnostics
The GRZ-H series monitors and prevents system failures, and it reduces the risk of costly downtime and material waste. To improve uptime, this controller has a silicon-controlled rectifier (SCR) over-temperature alarm, it monitors line voltage for failures, it has fuse break protection, and load interruptions are monitored and displayed clearly for users.
- 10A to 75A, three-phase power
- Two or three-leg control
- Zero-crossing voltage switching
- Input command: DC/AC signals
- Operating range 0°C-70°C/32°F-158°F (derating curves)
- Load voltage 480V AC or 600V AC
- Status monitoring and five diagnostic LEDs
- Compact sizes to fit in electrical panels
- DIN rail and panel mounting
- Push-in connectors
- Cage clamps for power cables
- Smart fan options (Vdc/Vac)
