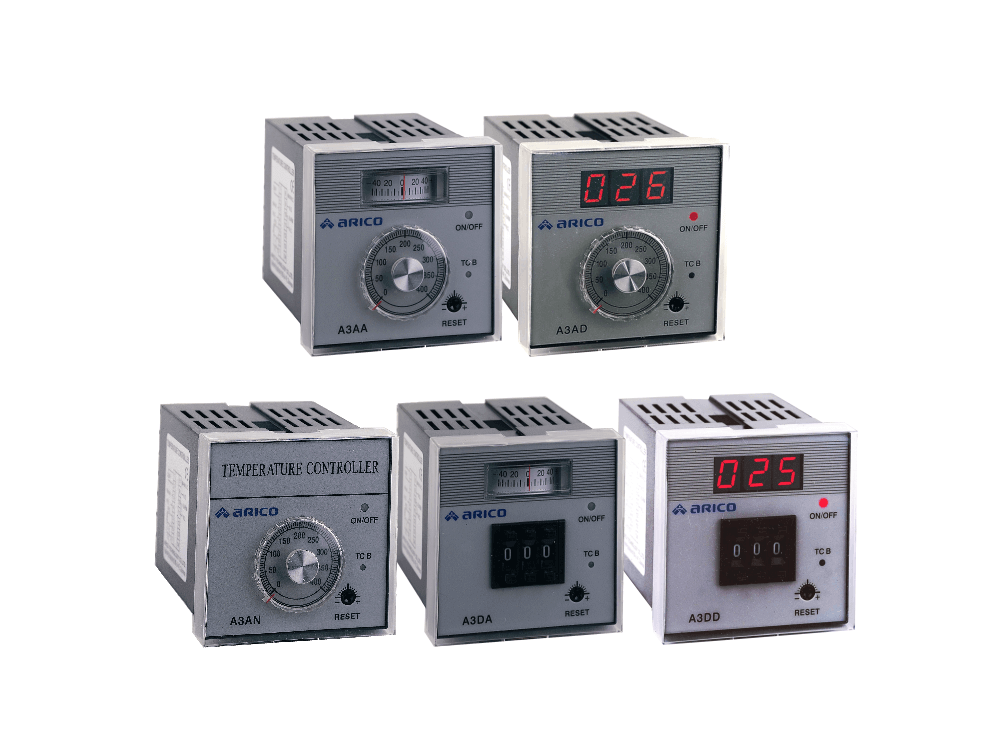

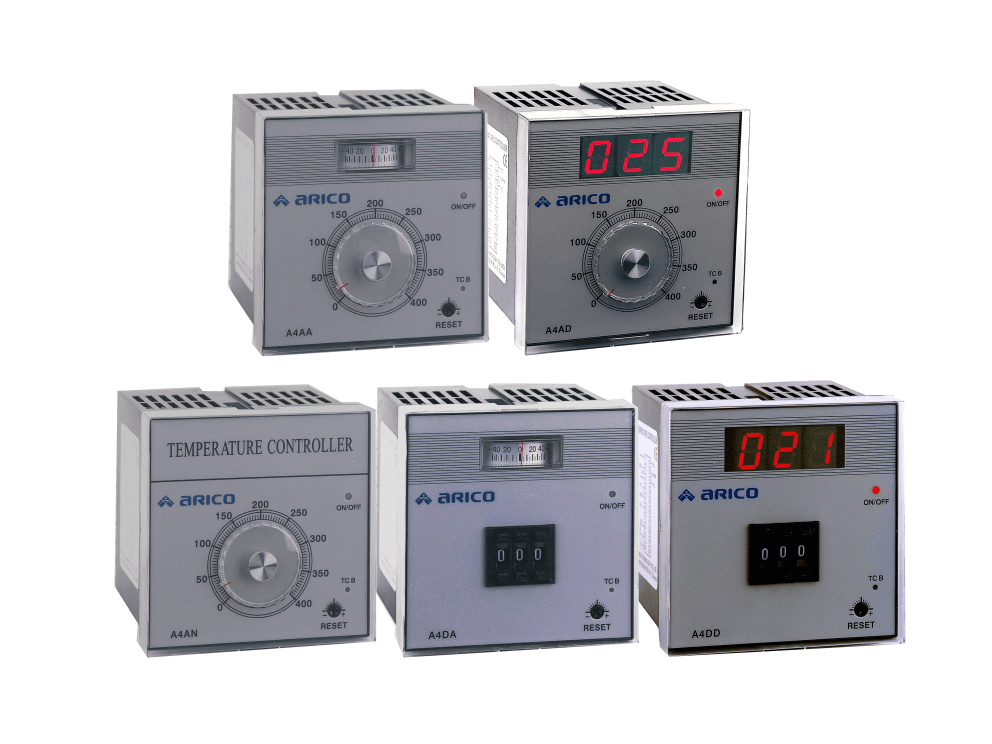

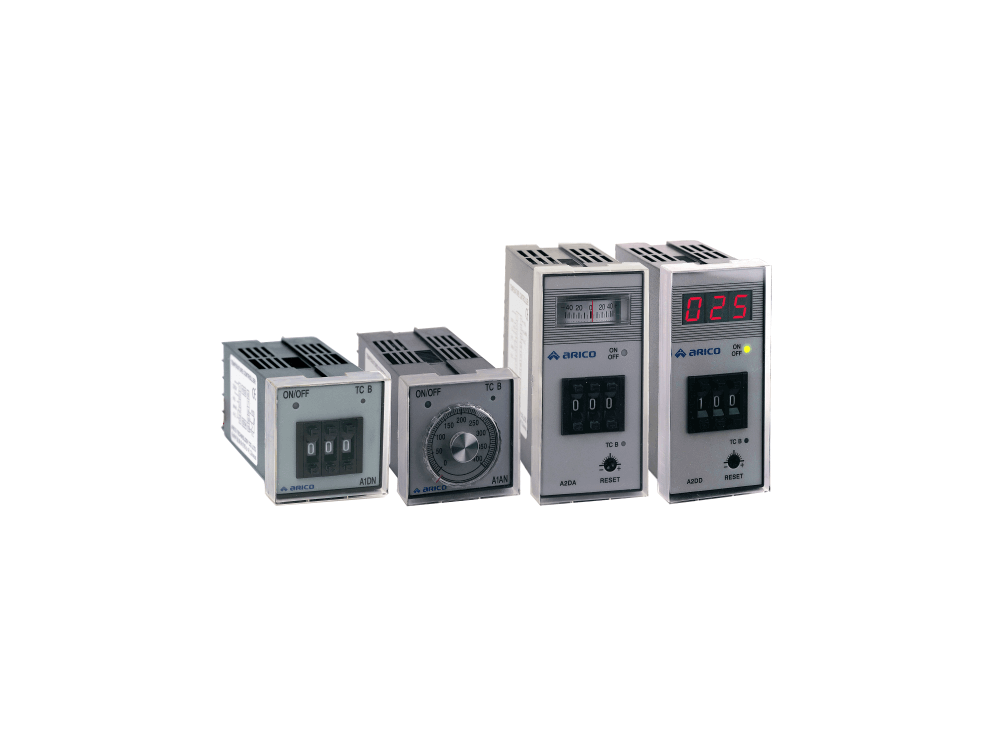

A Series Temperature Controller
Features
- Features include thermocouple-break indication, proportional (P) or ON / OFF or proportional control, heater-break indication, and five alarm output modes. These features improve user convenience and safety, and meet various application needs.
| Model | A1 | A2 | A3 | A4 | |
|
Dimension W × H Unit：mm |
W48×H48 | W48×H96 | W72×H72 | W96×H96 | |
| Unit Weight | 200g | 340g | 280g | 360g | |
|
Setting Type A: Analog D: Digital |
AN、DN | DA、DD | AN、AA、AD、DA、DD | AA、AD、AN、DA、DD | |
|
Display Type A: Analog D: Digital N: No display |
|||||
| Power Consumption | 2W | ||||
| Power Supply |
220±5% VAC 50 ~ 60 Hz |
110 / 220±5% VAC 50 ~ 60 Hz |
220±5% VAC 50 ~ 60 Hz |
110 / 220±5% VAC 50 ~ 60 Hz |
|
| Storage / Operate | -10 ~ 55°C；14°F ~ 130°F；10 ~80% RH | ||||
| Accuracy | 0.5 % Full scale | ||||
| Alarm Output | None | None & AC250V / 7A | |||
| Controlling Measure | ON / OFF, Proportional | ||||
| Controlling Output | |||||
| Relay contact | AC250V / 5A | AC250V / 7A | |||
| Digital Voltage | DC24V / 20mA(MAX) | ||||
| Analog Voltage | None | ||||
| Analog Current | None | ||||
| Input Type | |||||
| Thermocouple | J、K | ||||
| RTD | None | ||||
| Linear Analog | None | ||||
