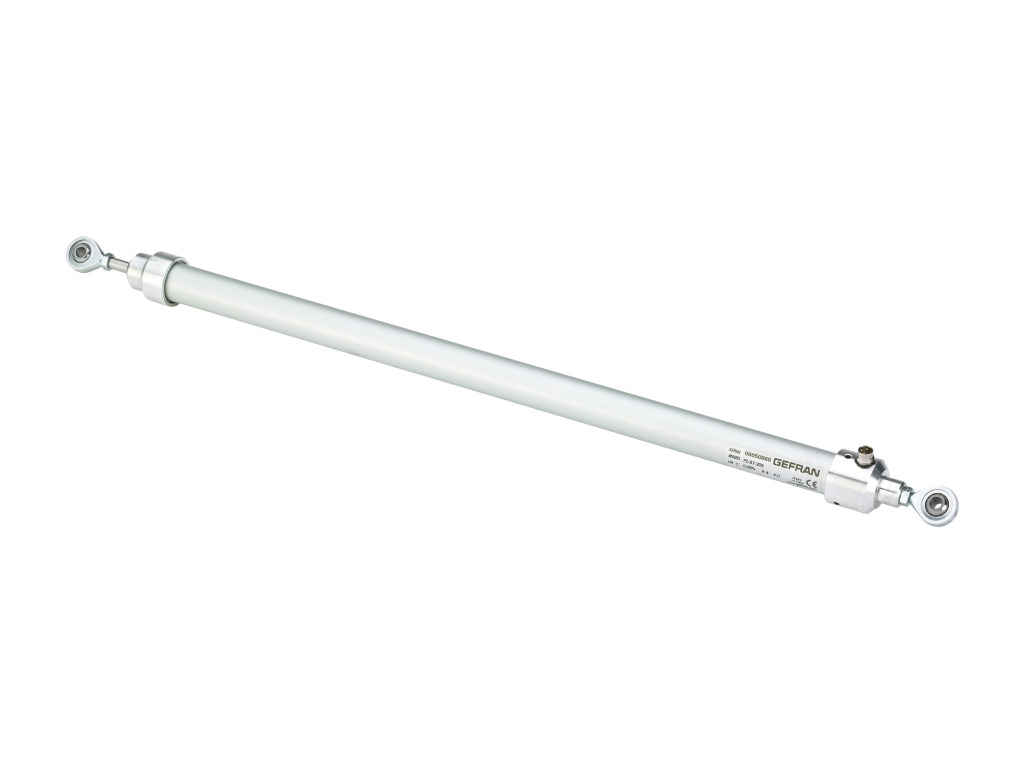

PZ67A

  • PZ67A

Features

    • This transducer is designed to guarantee a high protection level (IP67) in applications under harsh conditions and outdoors, where it may be necessary to work in the direct presence of dust, dirt, or liquids (not in prolonged immersion)
    • Its high protection level and very small size make thePZ67-A unique in terms of reliability and flexible installation
    • It is ideal for glass cutting and washing machines or forgoers and sanders if there is direct exposure to liquids or even just steam
    • Indicated for test and bench equipment, especially if outdoors

+ Add to Inquiry
  • Useful electrical stroke range:25 ~ 300mm
  • Independent linearity:± 0,2% on 25 / ± 0,1% from 50 to 100 / ± 0,05% from 125 to 300
  • Resolution:Infinite
  • Work temperature range:-30 ~ +100 °c
  • Maximum displacement speed:Standard: 3 msec ( max: 5 msec )
  • Protection level:IP67
  • Actuator:Rod
  • Installation:Self-aligning joints
