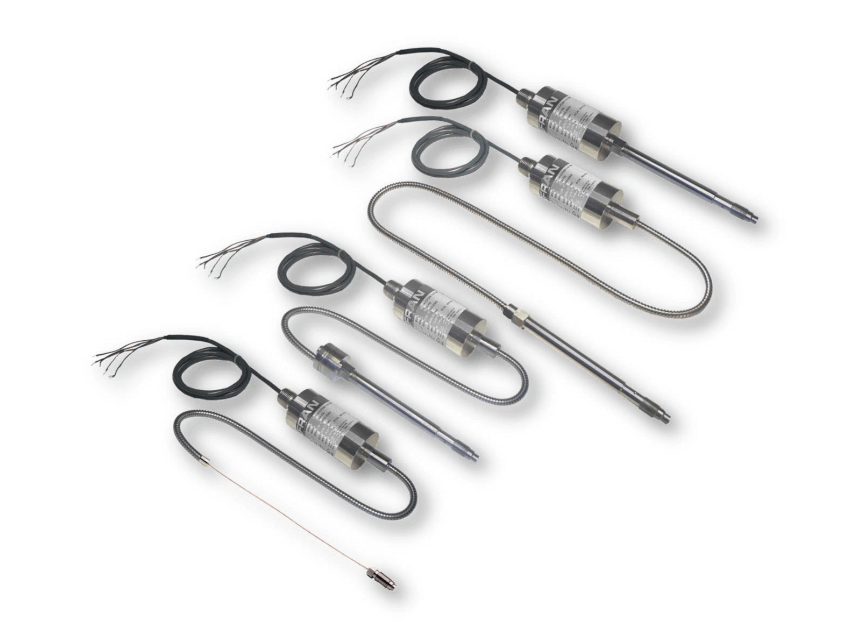

MFx Explosionproof Melt Pressure Transmitter - 2-wire 4-20 mA

  • MFx Explosionproof Melt Pressure Transmitter - 2-wire 4-20 mA


    • The entire amplifier/sensor assembly of an MF Series Melt Pressure Transmitter is packaged in a stainless steel welded enclosure with a conduit cable fitting.
    • This metal enclosure is completely sealed from the atmosphere, and is approved to meet hazardous area requirements.
    • The MF converts applied pressure at the point of measurement to a proportional voltage output signal.
    • An amplifier converts the strain gage signal to a 4-20mA output.
    • The small capillary tube filled with a special medium isolates the amplifier from potential thermal damage.

+ Add to Inquiry
  • Factory Mutual approved Explosion proof for Class I,
  • Division 1, Groups A, B, C, D, and Dust-Ignition proof for
  • Class II, Division 1, Groups E, F, G
  • Other approvals: CE, NEMA 4/IP65
  • High-level output 2-wire, 4-20 mA
  • Accuracy: <±0.25% FSO (H); <±0.5% FSO (M)
  • Internally generated 80% calibration signal (R-Cal)
  • 1/2-20 UNF thread standard, M18x1.5 also available
  • Fluid-filled system for temperature stability
  • 15-5 PH stainless steel diaphragm with Armoloy coating
  • standard (others available on request)
  • 17-7 PH corrugated diaphragm with TiN (Titanium Nitride) coating for ranges below 100 bar (1500 psi)
