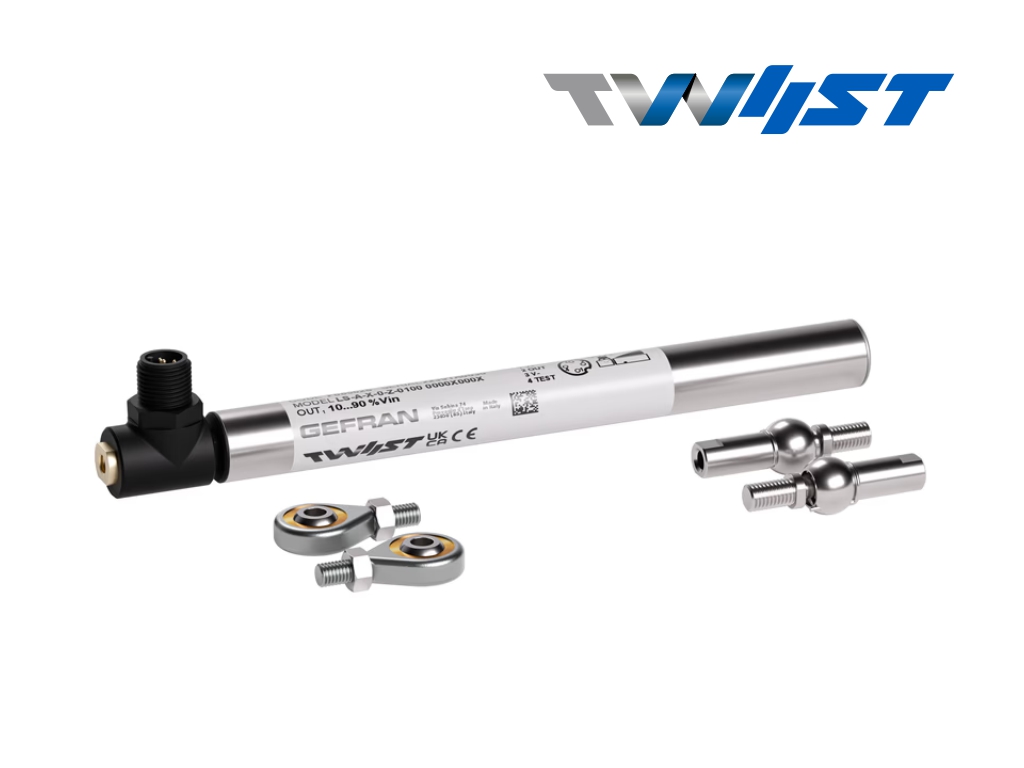

Gefran LS-A Contactless with TWIIST technology - Analog output
Features
- Strokes from 50 to 900 mm
- Measurement: position
- Outputs: ratiometric, voltage and current
- Contactless linear position transducer with TWIIST patented technology for longer lifetime.
- The absence of contact on the sensing element allows to obtain a fully-sealed, robust and compact sensor.
- The high performance in terms of robustness, thermal stability and EMC immunity make the LS-A series suitable for use both in industrial environments and mobile hydraulics applications.
- Strokes from 50 to 900 mm
- Measurement: position
- Outputs: ratiometric, voltage and current
- Self-aligning mounting mechanism
- Direct and reverse analog output in single and redundant configurations
- Working temperature: -40…+85°C
- IP67 protection
- RoHS 2011/65/EU compliance
- M12 connector output - 4, 5, 8-pin male
