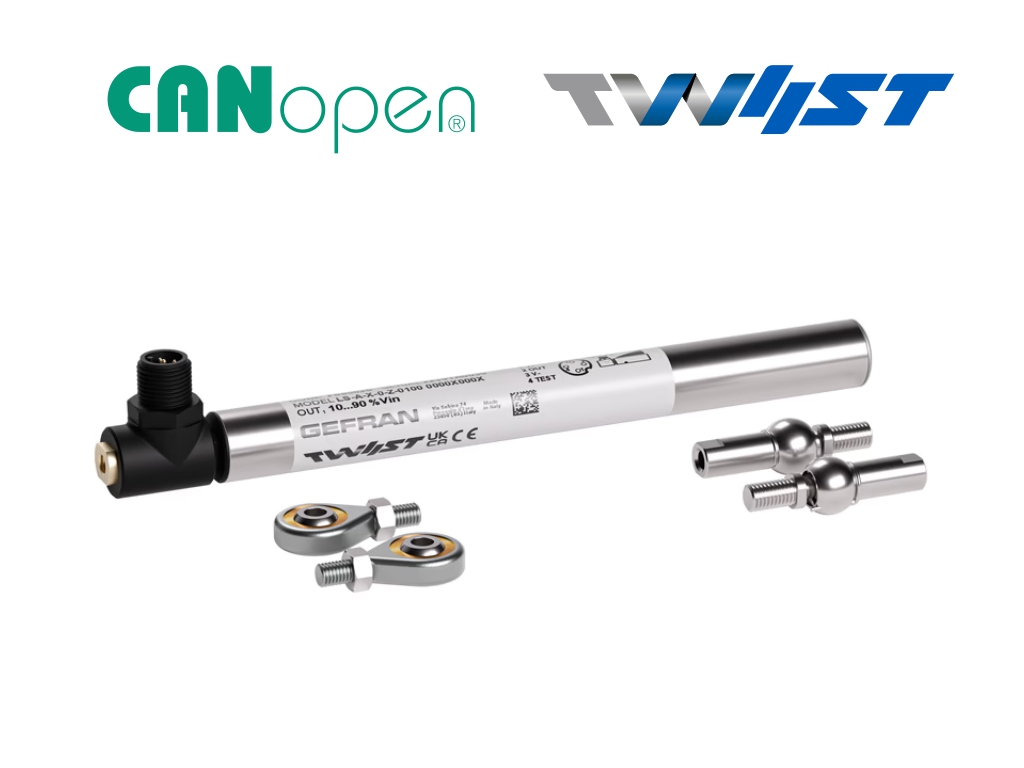

Gefran LM-C Contactless with TWIIST technology - Multivariable - CANopen

  • Gefran LM-C Contactless with TWIIST technology - Multivariable - CANopen

Features

  • Strokes from 100 to 900 mm
  • Multivariable sensor with advanced diagnostic and FW upgrade via bootloader.
  • Working temperature: -40...+85 °C
  • IP67 protection

+ Add to Inquiry
  • Contactless linear position transducer with TWIIST patented technology for longer lifetime.
  • The absence of contact on the sensing element allows to obtain a fully-sealed, robust and compact sensor.
  • The high performance in terms of robustness, thermal stability and EMC immunity make the LM-C series suitable for use both in industrial environments and mobile hydraulics applications. The possibility to measure additional variables with respect to position (speed, triaxial inclination, acceleration and vibration, electronics temperature) combined with the CANopen protocol, allows to benefit from the advantages of Industry 4.0 in terms of preventive product and process maintenance.
  • Strokes from 100 to 900mm
  • Measurement: position, velocity, triaxial tilt, acceleration and vibration, electronics temperature
  • CANopen output
  • Self-aligning mounting mechanism
  • Operating temperature: -40…+85°C
  • IP67 protection
  • Compliance with RoHS directive 2011/65/EU
  • Output connector M12 – 5 poles male
