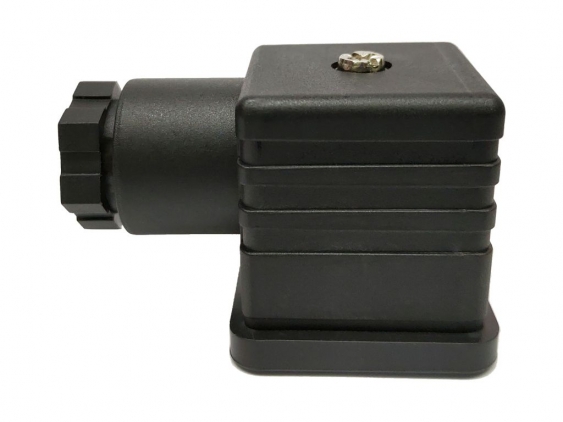

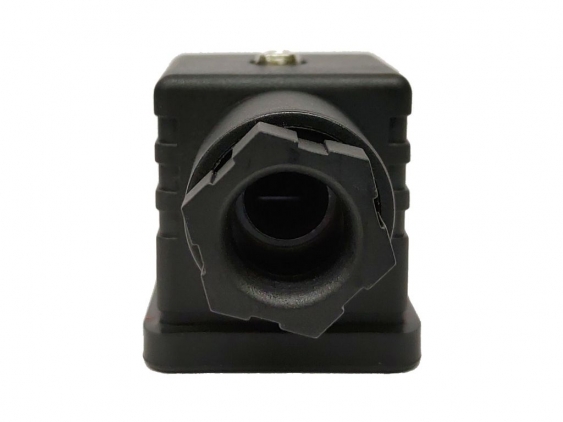

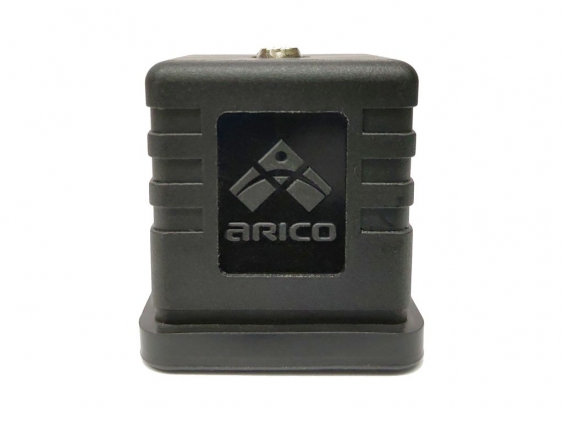

CON006 Connector
|
Item |
Data |
|

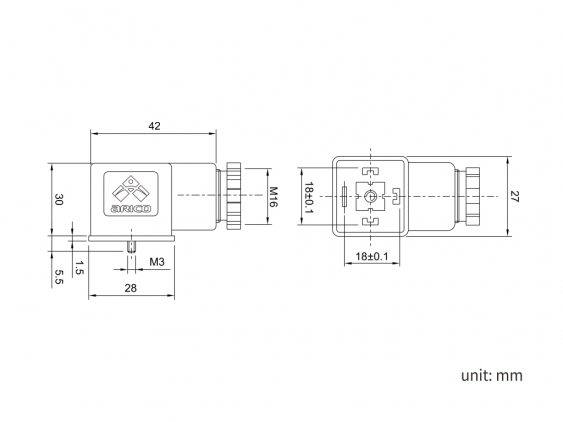

Pitch |
18 mm |
| Form | 3 + 1 GND |
| Protection Class | IP65 |
|
Working Voltage |
AC 250 V DC 300 V |
|
Rating Current |
10 A |
| Contact Resistance | ≤ 5 mΩ |
| Fixing Screw | M3×29 |
| Connection Screw | M16×1.5 |
|
Item |
Data |
|
Casing |
PA66 |
| Screw | Iron (nickel plating) |
| Plug | Phosphorus Copper |
|
Terminal |
Brass |
