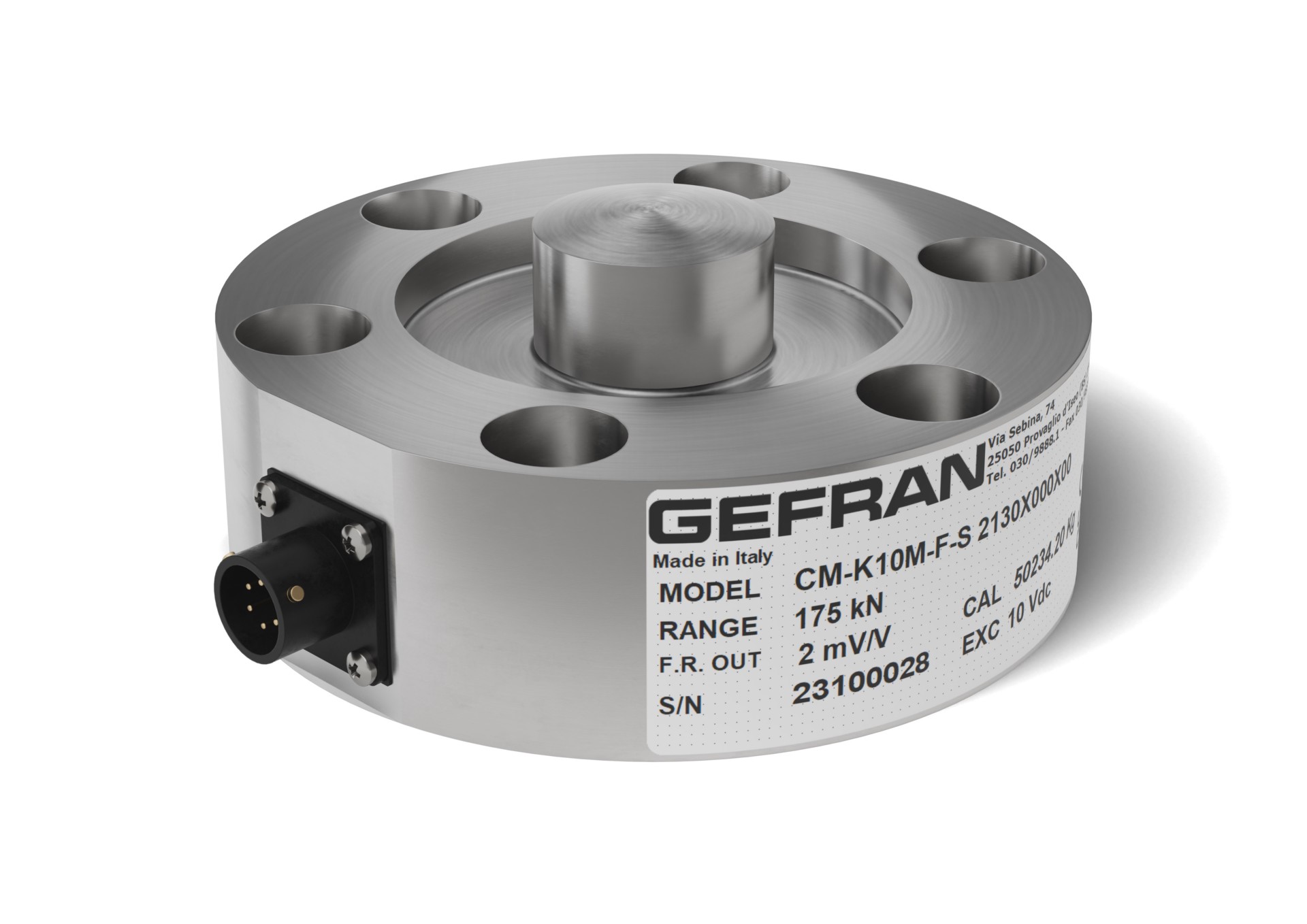

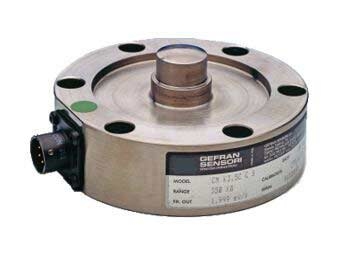

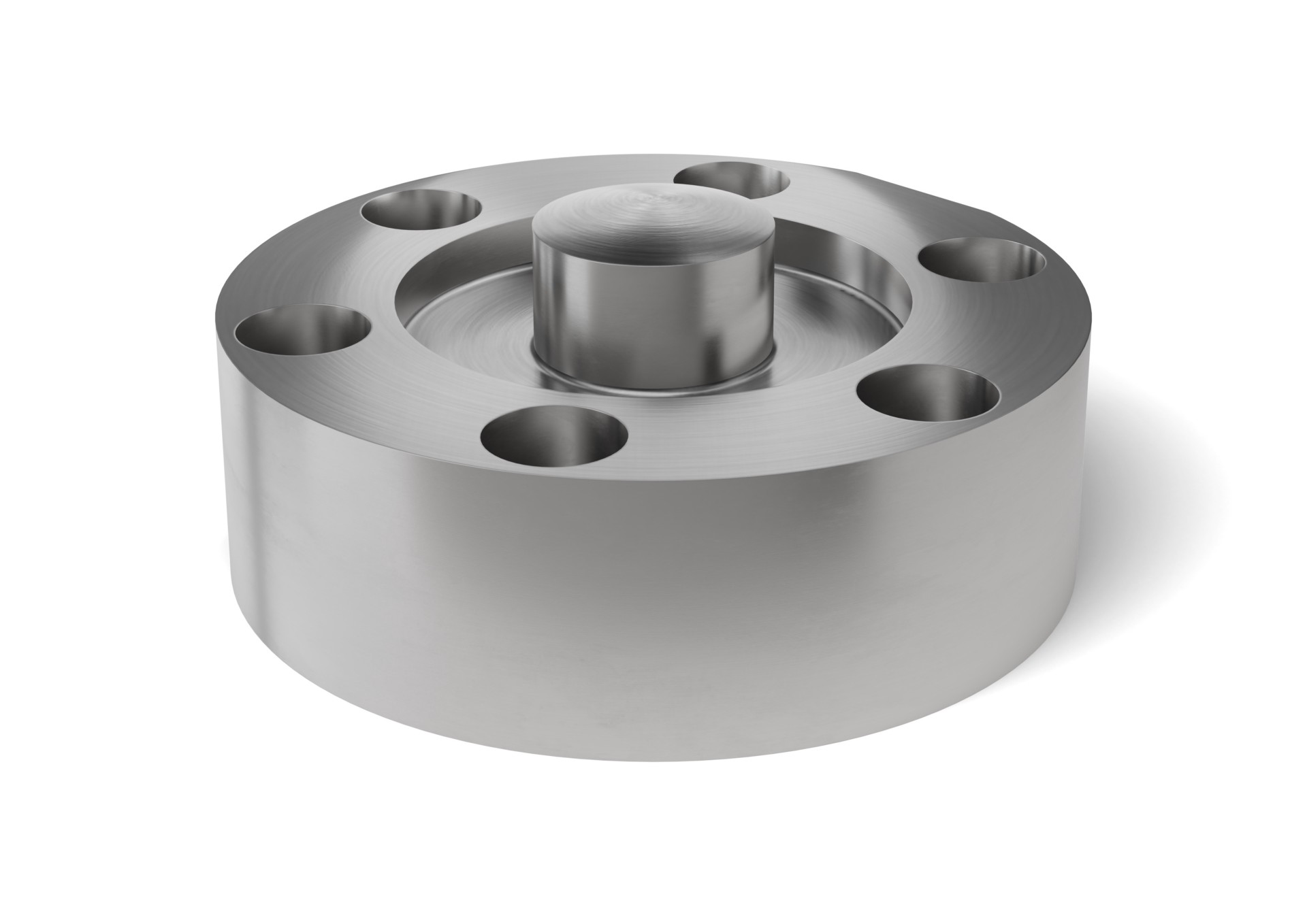

CM Load Cells

  • CM Load Cells

Features

    • 1. Range of measurement: from 100 to 50.000 Kg
    • 2. Accuracy class: 0,1%
    • 3. All stainless steel construction
    • 4. Corrosion resistant
    • 5. Internally generated calibration signal
    • 6. Grade of protection: IP67 (DIN 40050)

+ Add to Inquiry
  • CM-1-2-3-4
  • 1:Measurement range (KG)

  •    K1C----0-100
       K2C----0-200
       K3.5C----0-350
       K5C----0-500
       K7.5C----0-750
       K1M----0-1000
       K2M----0-2000
       K3.5M----0-3500
       K5M----0-5000
       K7M----0-7000
       K10M----0-10000
       K20M----0-20000
       K30M----0-30000
       K50M----0-50000
  • 2:Electric connections

  •    F----6*0.25--5m shielded cable

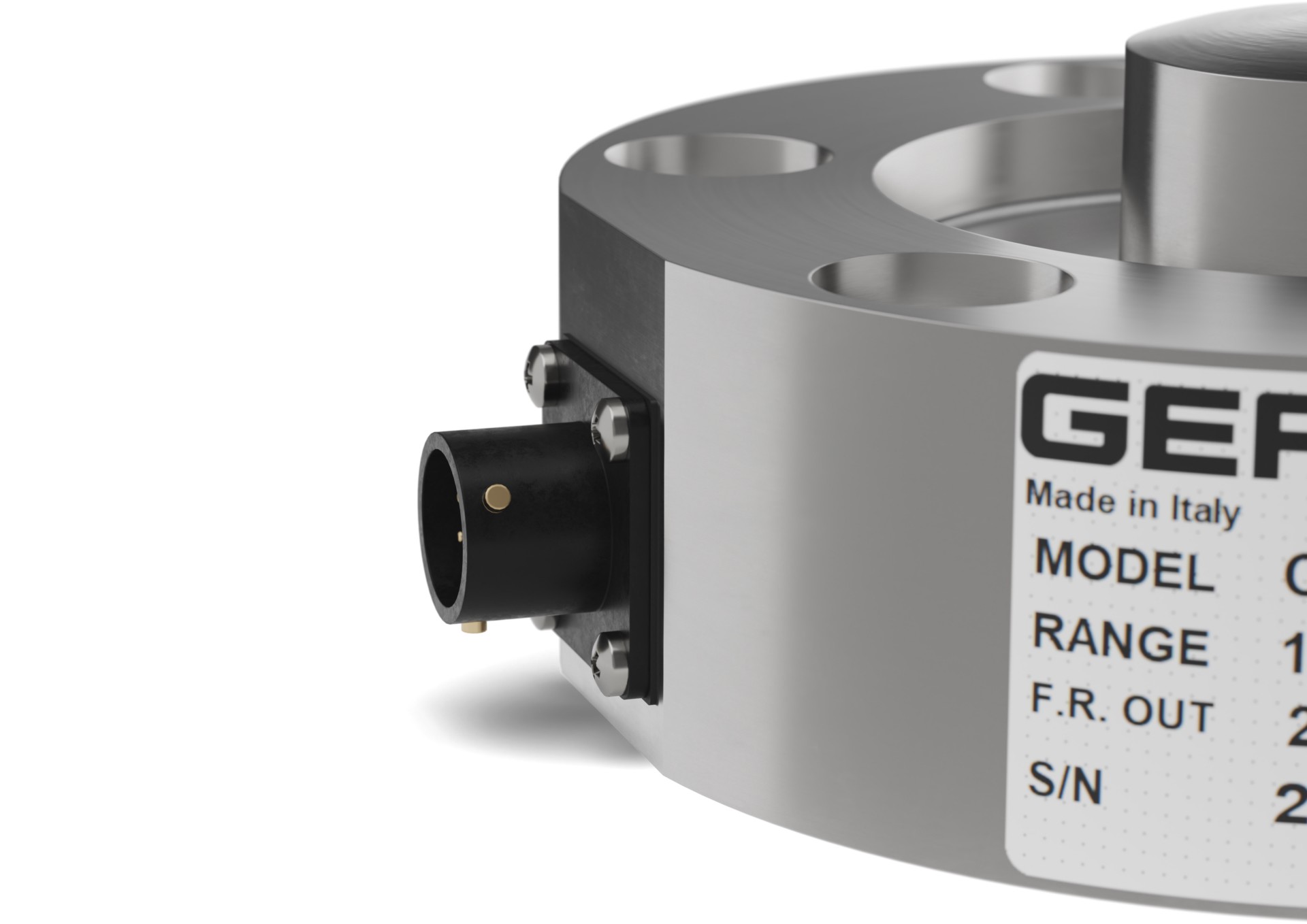

       C----VPT02A10-6PT2 connector
  • 3:Sensitivity

  •    S----2mV/V
       R----3mV/V(500-5000kg)
  • 4:Customer requested
